UNI-T UT204+ Digital Clamp Meter

UNI-T UT204+ Digital Clamp Meter In Bangladesh

The UNI-T UT204+ Digital Clamp Meter in Bangladesh. Get the original products at the most affordable price at DROPSHOP.COM.BD and enjoy the quality with the promise of the best customer service in Bangladesh.

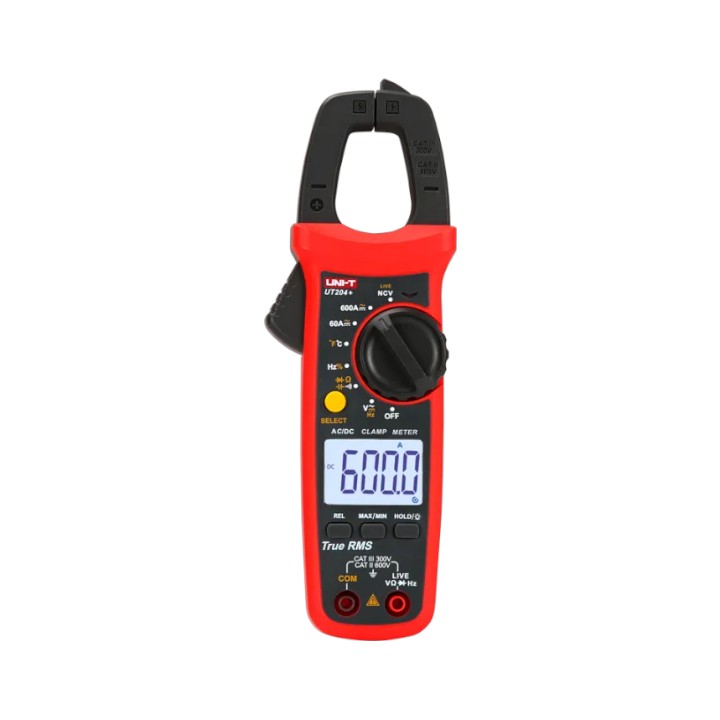

The UNI-T UT204+ is a professional-grade True RMS clamp meter designed for accurate and safe measurement of AC/DC voltage, current, resistance, capacitance, frequency, and temperature. Ideal for electricians, technicians, and DIY users, this meter offers non-contact voltage detection (NCV), a large backlit display, and multiple safety ratings for reliable performance in demanding environments.

Features

• True RMS for precise readings on non-linear loads
• Measures up to 600A AC/DC current and 600V AC/DC voltage
• NCV function for safe non-contact voltage detection

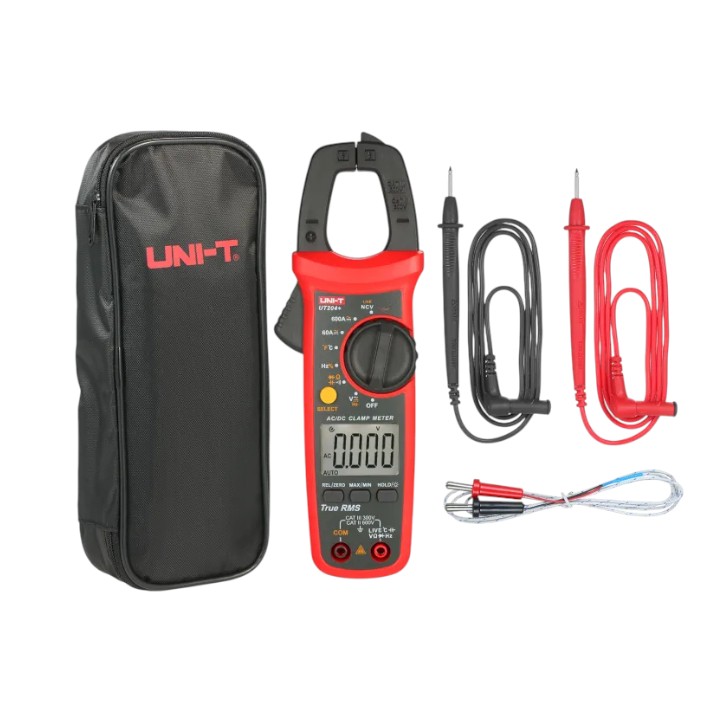

• Temperature measurement with included thermocouple
• Frequency and duty cycle analysis
• Auto range and data hold functionality
• MAX/MIN recording and ZERO reset
• Large LCD screen with backlight for low-light use
• CAT III 300V / CAT II 600V safety rating
• Durable clamp with 28mm jaw opening

Specifications

• Voltage Range: 600V AC/DC
• Current Range: 600A AC/DC
• Capacitance: Up to 60mF
• Resistance: Up to 60MΩ
• Frequency: Up to 10MHz
• Temperature: -40°C to 1000°C
• Display Count: 6000
• Clamp Opening: 28mm
• Safety Rating: CAT III 300V / CAT II 600V
• Power Supply: 2 x AAA batteries
• Dimensions: 215mm x 63mm x 36mm
• Weight: Approx. 280g

How It Works

• Rotate the dial to select the desired measurement mode (AC/DC current, voltage, resistance, etc.)
• Use the clamp to measure current without direct contact by clamping around the conductor
• Insert test leads into the COM and VΩHz ports for voltage, resistance, or frequency measurements
• Activate NCV mode to detect live wires without touching them
• Use the HOLD, MAX/MIN, and ZERO buttons to freeze or reset readings as needed
• For temperature, connect the thermocouple and switch to the °C mode
