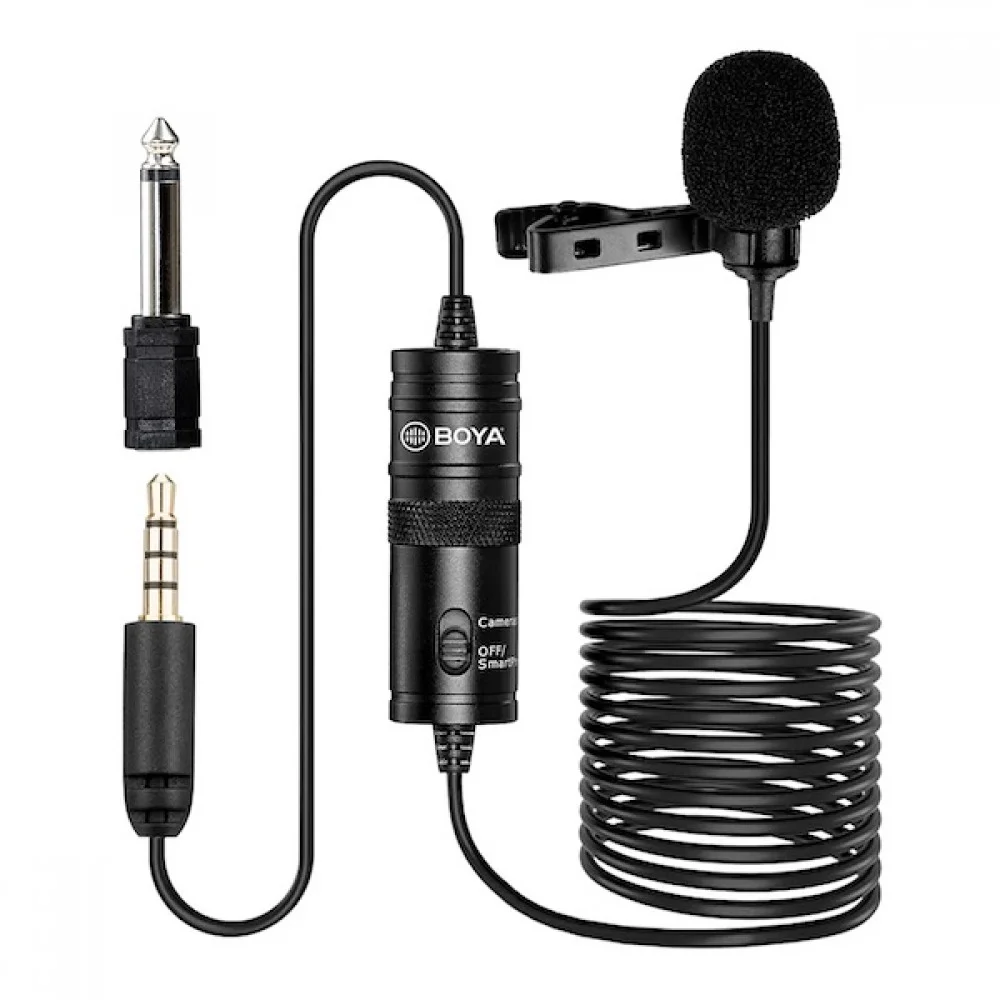

BOYA M1 Microphone (BOYA Official Product)

Using the BOYA M1 Microphone:

• For Smartphone
  • Switch off the microphone. Slide the ON/OFF up to OFF/Smartphone
  • The power is shut down
• For DSLRs, Camcorders, Audio recorders, PC, etc.
  • Switch on the microphone. Slide the ON/OFF up to ON

Features of BOYA M1:

• Clip-On Mic for Smartphones, DSLRs, Camcorders, Audio recorders, PC, etc.
• Omnidirectional condenser microphone
• A high-quality condenser is ideal for video use
• Low handling noise
• Includes lapel clip, LR44 battery, foam windscreen, 1/4” adapter

Specifications:

• Brand: Boya
• Model Number: Boya BY-M1
• Transducer: Electret Condenser
• Polar pattern: Omnidirectional
• Frequency Range: 65Hz ~ 18 KHz
• Signal/Noise: 74dB SPL
• Sensitivity: -30dB +/- 3dB / 0dB=1V/Pa, 1 kHz
• Output Impedance: 1000 Ohm or less
• Connector: 3.5mm (1/8”) 4-pole gold plug
• Accessories Furnished: lapel clip, LR44 battery, foam windscreen, 1/4” adapter
• Battery Type: LR44
• Dimensions: Microphone: 18.00mmH x 8.30mmW x 8.30mmD
• Cable: 6.0m
• Weight:
• Microphone: 2.5g
• Power Module: 18g
